Artisan/Series V

Electric Projection Screen – Wall/Ceiling Mounted Tab-Tensioned

Highlights:

  • Case dimensions 16 cm x 15 cm. Bevel case style is 19 cm high.
  • Maximum image width up to 244 cm wide, depending on surface selection.

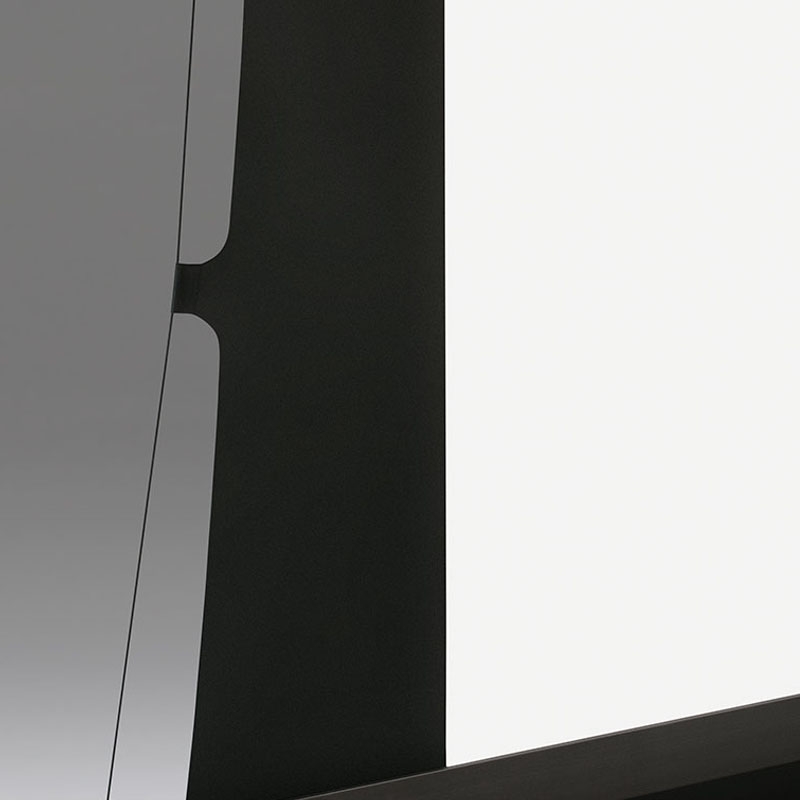

  • RF welded tabs eliminate stickiness and tab separation. Tabs warranted against separation for five years.
  • Image area fully framed with black. Standard 30 cm black drop at top of viewing area.

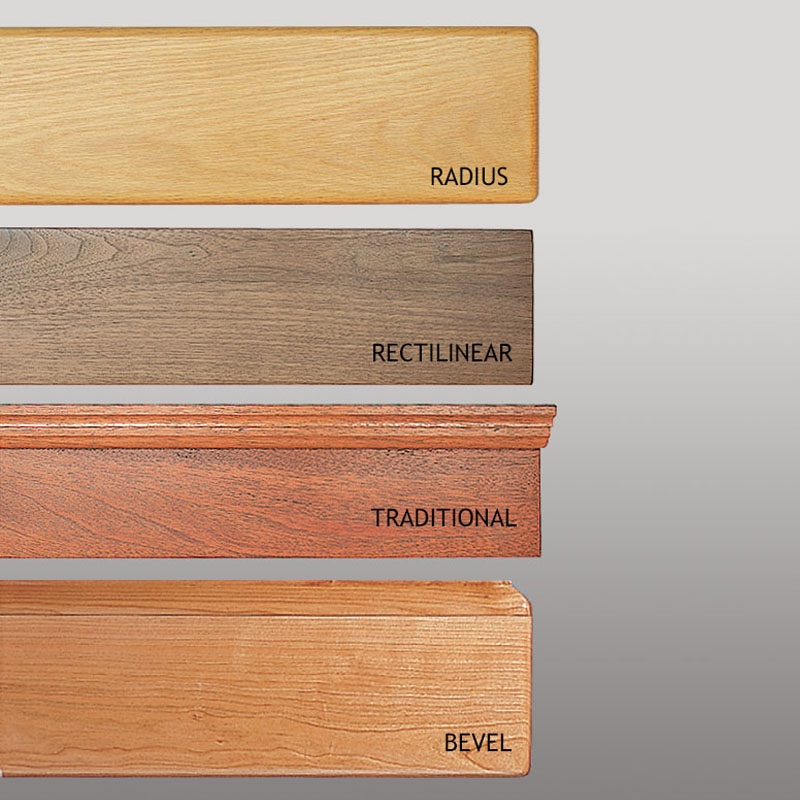

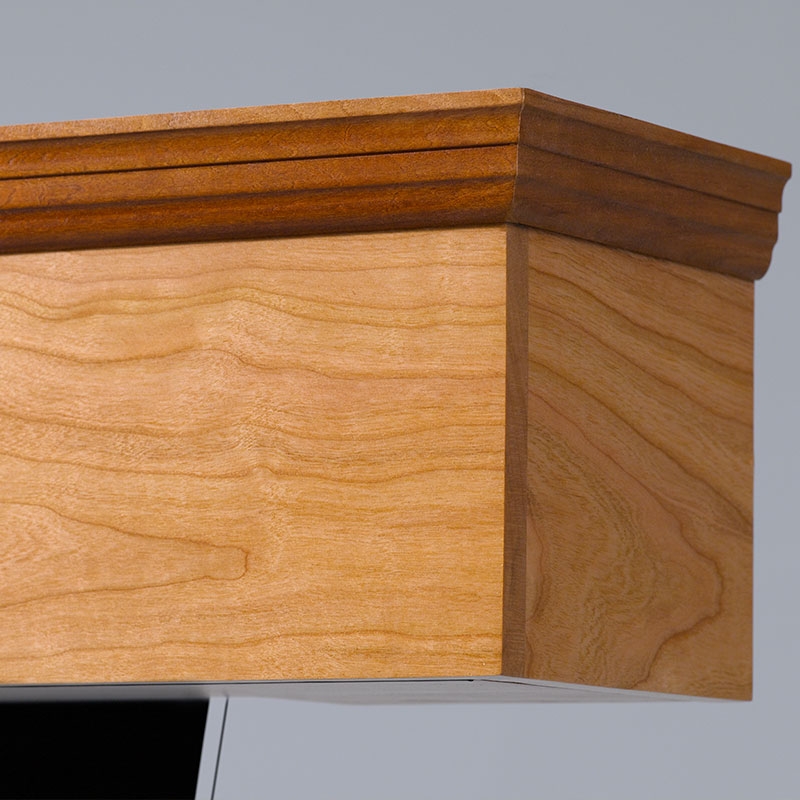

  • Hardwood case styles: rectilinear, radius, bevel, or traditional. Choose from seven solid, hand-rubbed hardwood finishes. Custom finishes available.
  • Plastic laminate case style is rectilinear. Choose from five laminate finishes or optional custom finish.
  • Rear projection surfaces available.
  • Mounts flush to the wall with Z-clips or suspends from the ceiling with no exposed screwheads or mounting brackets.
  • Heavyduty 220V motor, 3-position switch (standard). Other control options are available.
  • Custom sizes available.

Artisan/Series V

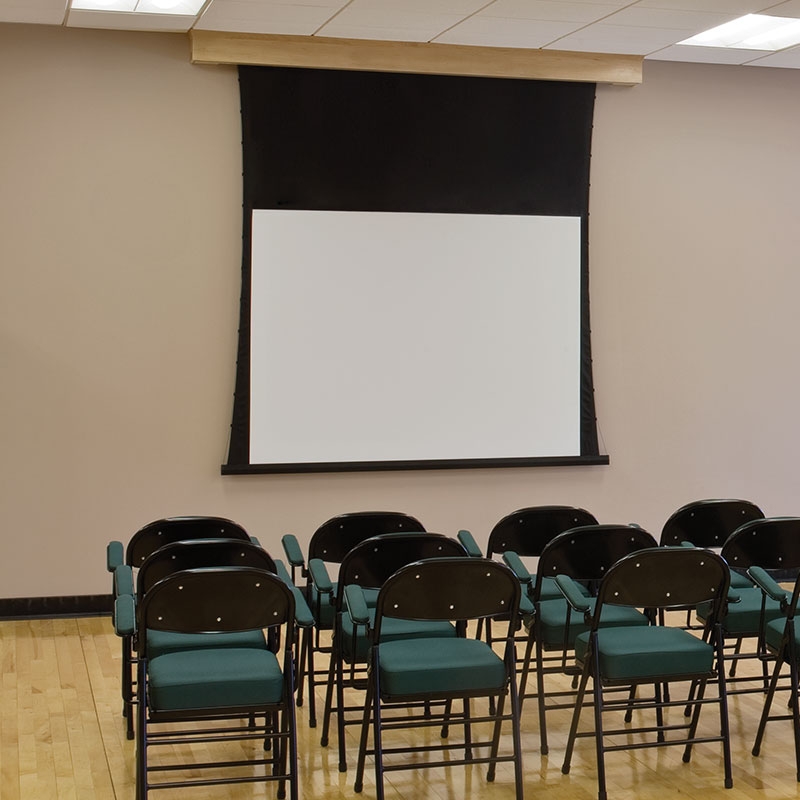

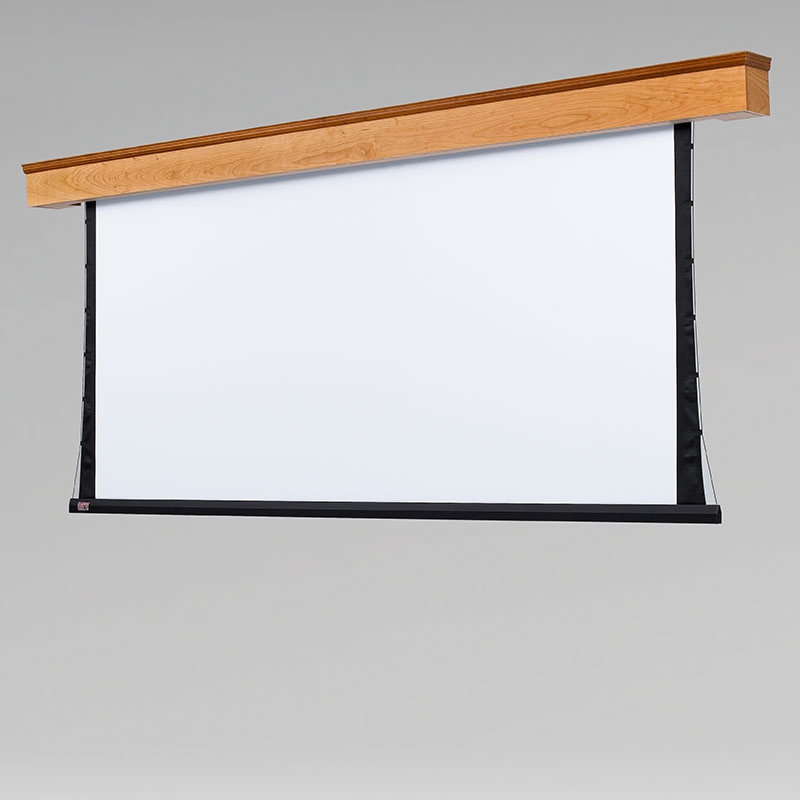

The Artisan V electric, wall- or ceiling-mounted, tab-tensioned projection screen offers quality engineering with style. This screen features either a solid, hand-rubbed hardwood or plastic laminate case with an array of colors, finishes, or custom color matching to the existing interior decor. There are several case style options to choose from making this projection screen an attractive addition to any home or commercial setting. Tab-tensioned screens provide a perfectly flat viewing surface with better image quality. Draper’s RF welded tabs create a more durable seal that eliminates separation and stickiness.

Surface

Dimensions Data



AV Format
Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)
Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)
Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)
Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
