Avonic CM83 PTZ Camera 4K & Full HD


A high-quality PTZ camera with excellent video and strong zoom. Best for professional use like studios and large venues.

Features:

  • Tracking
  • 4K & Full HD output
  • Low-latency Streaming
  • 30x zoom in 4K or up to 50x in digital zoom
  • Simultaneous HDMI, SDI, USB & IP output
  • High Pan/Tilt speed
VC-A61P 4K 30fps PTZ IP Camera

The Essential 4K PTZ Camera

The CM32 is Avonic’s essential 4K PTZ camera, designed for high-quality video capture in fixed installations such as classrooms, meeting rooms, and houses of worship. It offers sharp 4K resolution, smooth PTZ control, tracking, and easy integration into AV systems. Focused on simplicity and strong core performance, the CM32 is ideal for everyday applications, built with the quality Avonic is known for.

4K sensor

The CM32’s 4K sensor delivers impressive clarity, also when outputting in Full HD. Enhanced detail and sharpness make every frame stand out. It captures crisp, detailed visuals that elevate any presentation or stream. Optimized for low-light settings, it performs reliably under any circumstance.

newline_malaysia
VC-A61P 4K 30fps PTZ IP Camera

High Pan Tilt speed

The CM32 features impressive pan and tilt speeds, making it ideal for fast-paced, demanding environments. Whether tracking a presenter across a stage or covering rapid transitions, it moves quickly and smoothly with precision. Its responsive motion control ensures critical moments are always captured in real time. Built for speed and reliability, the CM32 performs flawlessly when timing is everything.

Tracking Features

1) Hybrid Tracking
Merge free-motion tracking with focused zones for enhanced control.

2) Presenter Tracking
With Presenter Mode, the camera fluidly tracks speakers to keep your audience engaged.

2) Conference Tracking
Automatically captures delegates in formal settings like COP conferences, G20 summits, and parliamentary sessions.

Specification

CAMERA
Resolution Up to 4K30
Video Systems HDMI output 4k30, 4k25, 1080p60/59.94/50/30/29.97/25, 720p60/59.94/50
Sensor Sony 1/2.8″, 8.42MP, 16:9 High SNR CMOS Sensor
Shutter Auto / Manual 1/60th ~ 1/10000th
Scanning mode Progressive
Zoom / Aperture / Focal length 20x Zoom (4K) & 30x Zoom (HD) / F1.8 ~ F11 / 4.1mm ~ 43mm (+/-5%)
Minimal Illumination 0.5 LUX @F1.8
White Balance Auto, Manual, One Push, Manual 2400 ~ 7100K in 100k steps
Backlight Compensation Supported
Digital Noise Reduction Supported
Signal Noise Ratio >50 dB
Horizontal FOV 68.5° ~ 4.0°
Vertical FOV 40.5° ~ 2.0°
Horizontal rotation +/- 170°
Vertical rotation 120° (30° down, 90° up)
Pan speed range 0.15° ~ 120° p/s
Tilt speed range 0.15° ~ 70° p/s
H&V image flip supported
Number of presets 255 with 0.1° accuracy
Control UVC, IR Remote, IP
Control protocol UVC, IR Remote, IP; Visca over IP, HTTP API, ONVIF
IP FEATURES
Video coding standard H.265 / H.264 / MJPEG
H.265 Profiles main
H.264 Profiles base, main, high
Main stream resolution 3840×2160 / 1920×1080 / 1280×720
Main stream max frame-rate 30fps
Main stream bitrate 64 ~ 40960 Kbps
Sub stream resolution 1920×1080 / 1280×720 / 720×480 / 640×480 / 640×360 / 320×240 / 320×180
Sub stream max frame-rate 30fps max
Sub stream bitrate 64 ~ 40960 Kbps
Video bitrate type CBR, VBR
Supported protocols RTSP, RTMP, ONVIF, Multicast, Unicast

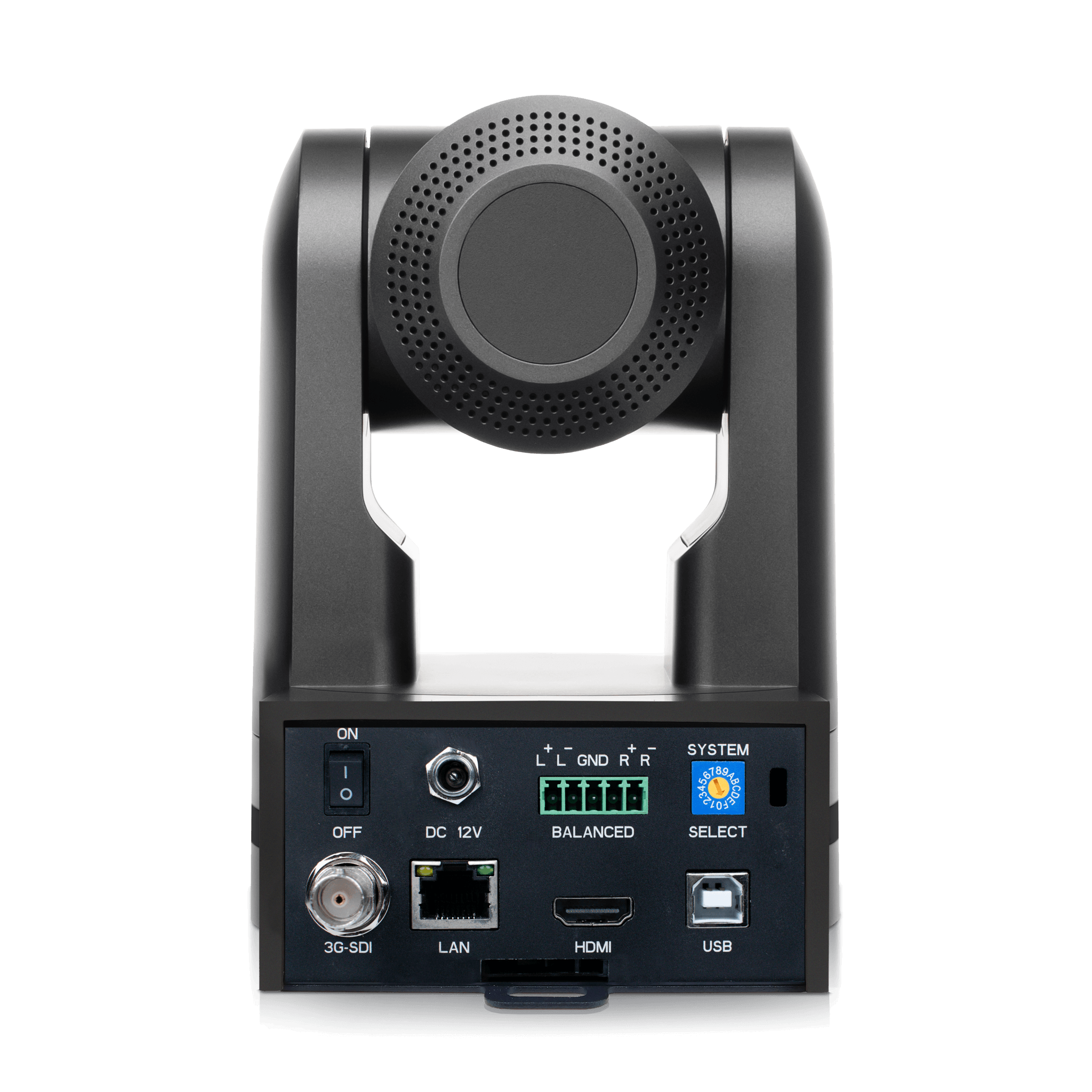

INPUT / OUTPUT INTERFACE
HDMI output HDMI output (4K30/1080p60 etc.)
USB Output USB2.0 Type B, 2160p30 max.
Network interface RJ45 100 mbit
GENERAL SPECIFICATIONS
Input voltage 12V
PoE PoE 802.3AT (PoE) at 15 watt
Power consumption 15W
Power supply 12V2A
Power connector EIAJ-4 – Philmore 255 plug
Operating temperature -5°C ~ 35°C
Storage temperature -20°C ~ 60°C
Operating humidity 20% ~ 95% non-condensing
Bottom fastening screw thread 1/4″ 20 UNC
Color Black, White
Dimensions (product) w/hxdx 13.3 x 18 x 15.3 cm (excl. connectors)
Weight product 1.6 kgs
Dimensions box 26 x 24 x 24 cm
Included accessories power adapter, remote control, USB cable
️ SKU & VARIANTS
Black SKU CM32-IP-B
White SKU CM32-IP-W
CLUDED FEATURES
Tracking modes Hybrid Tracking, Presenter Tracking
PRODUCT LABEL & CERTIFICATIONS
Model (White) AV-CM32-IP-W
Product name label PTZ Camera 4K & Full HD 20x zoom (White)
Package Quantity 1
Designed / Origin Designed for the Netherlands, Made in China
Approvals EU Regulation 1196/2006, DCFGover
Manufacturer Contact The Netherlands +31 157112712, info@av-cm.com
CE Markings CE (conforms to EU standards) — marked twice on label
Additional Label Info Identical label on white model; black model SKU CM32-IP-B with similar compliance
