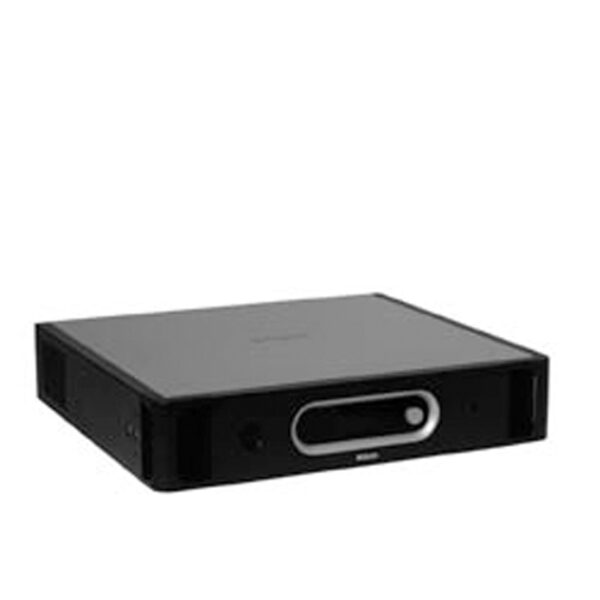

DCN-CCU Central Control Unit

DCN Central Control Equipment-Next Generation

In combination with a PC, the DCN Central Control Unit (CCU) brings greater sophistication to conference control.

Features and Benefits:

• IF design award
• Control for up to 245 Contribution units
• Control facilities for an unlimited number of DCN-FCS 32 channel selectors
• 2 x 32 high-quality audio channels
• Basic microphone management facilities
• Three operational microphone modes:
• Open: microphone button control with request-to-speak (Auto)
• Override: microphone button with override of activated microphones (FIFO)
• Voice: voice activated microphones
• Number of open microphones between 1 and 4
• Basic voting control for parliamentary voting procedure. Delegates can register ‘Present’, ‘Yes’, ‘No’ and ‘Abstain’. The Concentus Chairman unit can start, stop and suspend the voting. The total results can be displayed on hall displays and on the LCD screens of the units. Also included is a page function, which activates a voting tone. The chairman can use this tone to indicate that a voting round is about to start.
• Basic simultaneous interpretation function with as many as 31 language channels plus one floor channel
• Basic intercom function with a function to assign intercom operator and intercom chairman (both can be called from the interpreter desk)
• Automatic camera control
• 2 audio line inputs and 2 audio line outputs
• Adjustable sensitivity for the audio inputs
• Adjustable level for the audio outputs
• Audio insertion facility to connect external audio processing devices or telephone couplers
• Configuration of CCU and system via a display and a single rotary push button
• Each CCU can be assigned a unique name by the installer for easy identification
• VU meter readings to monitor audio inputs and audio outputs. The audio can be monitored using headphones
• 19” (2U) housing for table top or rack mounting
• Handgrips for easy transportation
• 19” rack mounting brackets, detachable feet and mounting accessories included
• System installation and user instruction on CD ROM
