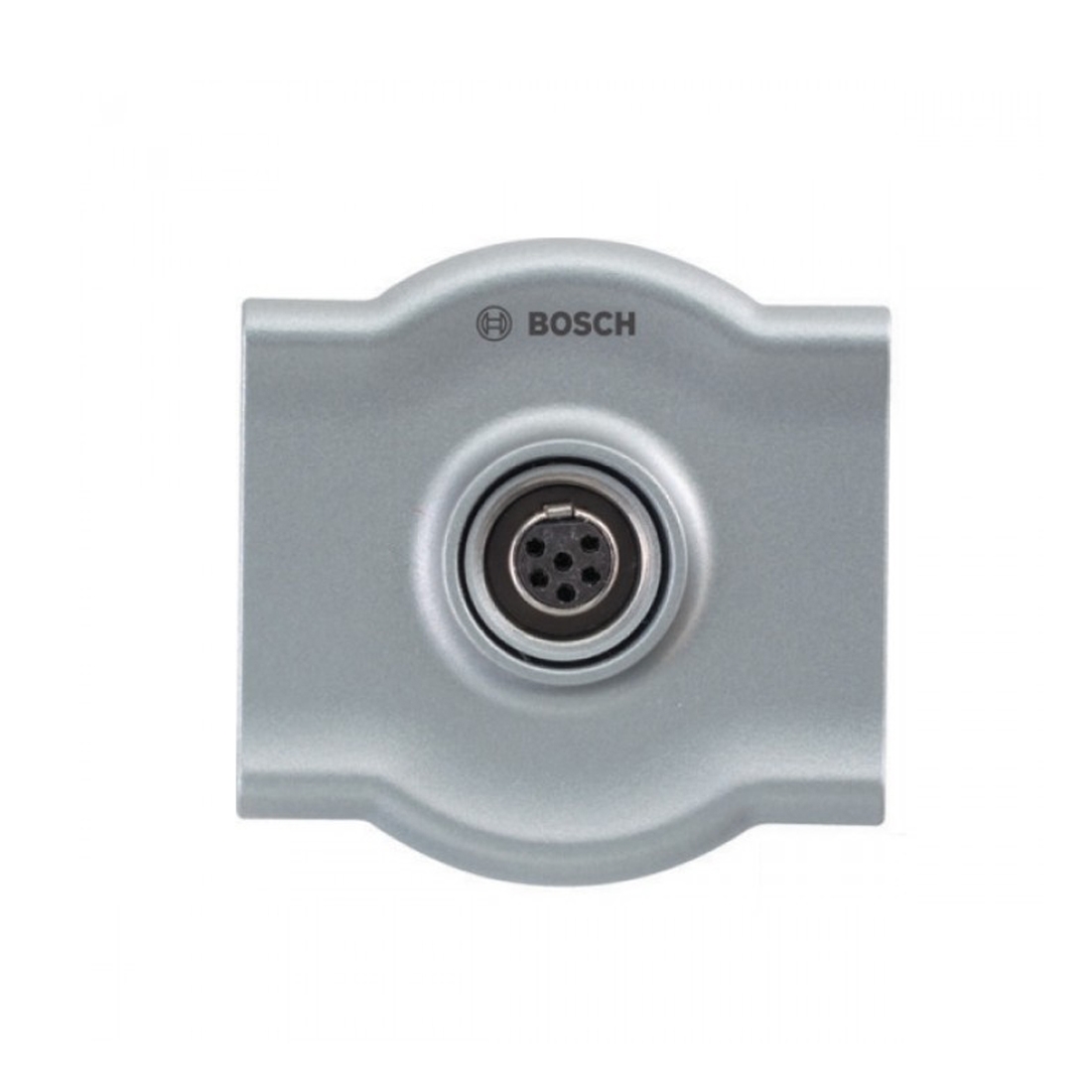

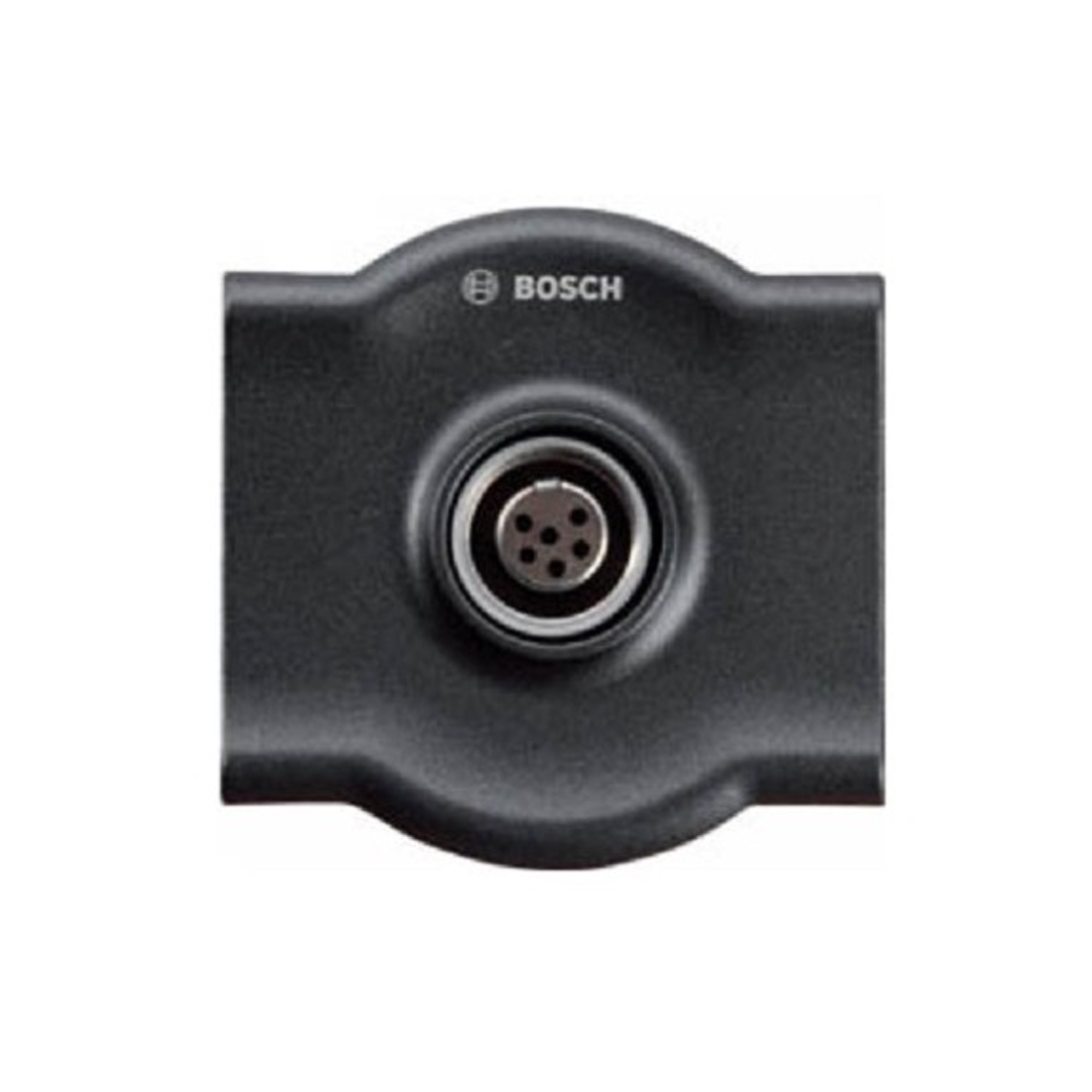

DCN-FMIC Microphone Connection Panel

DCN Concentus – Next Generation

The Microphone Connection Panel connects the pluggable microphone DCN-MIC to one of the audio inputs to the Dual Delegate Interface (DCN-DDI).

Highlights:

• IF design award
• Channel selector output level control.

Controls and Indicators

• 2 m cable (78.7 in) terminated with eight-pole 262° DIN-type plug.
• Connector to control output level reduction of the channel selector (AMP173977-2 socket).
