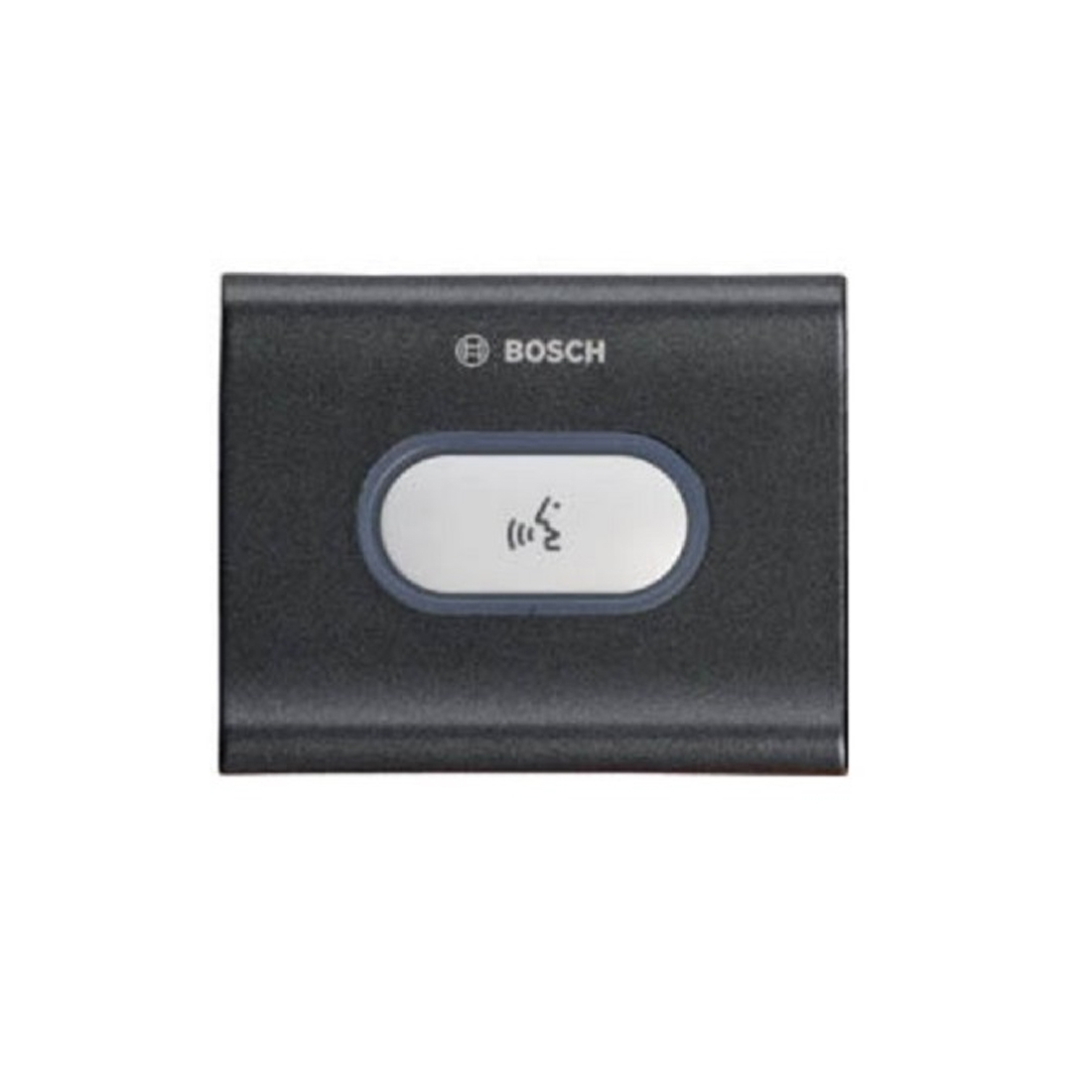

DCN-FMICB Microphone Control Panel

DCN Concentus – Next Generation

The Microphone Control Panel is connected to the Dual Delegate Interface (DCN-DDI) via one of the RJ11 control inputs.

Highlights:

• IF design award
• Microphone on/off button
• Red Microphone on indicator
• Green request indicator
• Orange VIP indicator

Controls and Indicators

• One microphone control button

• Three color illuminated ring around the microphone button The illuminated ring around the button can operate in several states:
  Red
  Microphone is active
  Flashing red*
  Last minute of speech time is active.
  Green
  The delegate is listed in the request list.
  Flashing green
  The delegate is the first in the request list and the next one to get the floor.
  Yellow*
  The delegate is part of the Notebook and can control its microphone without interaction of the operator.
