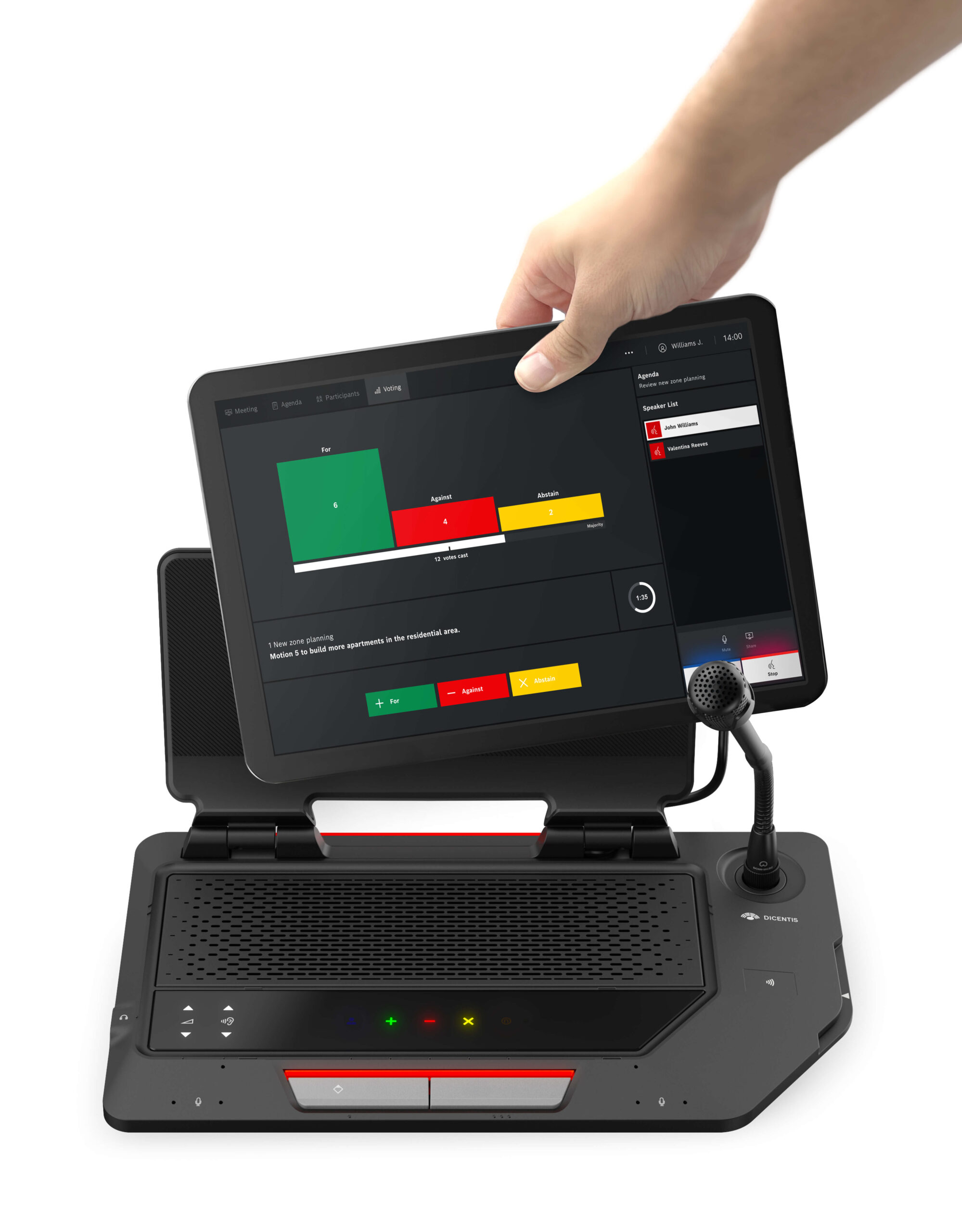

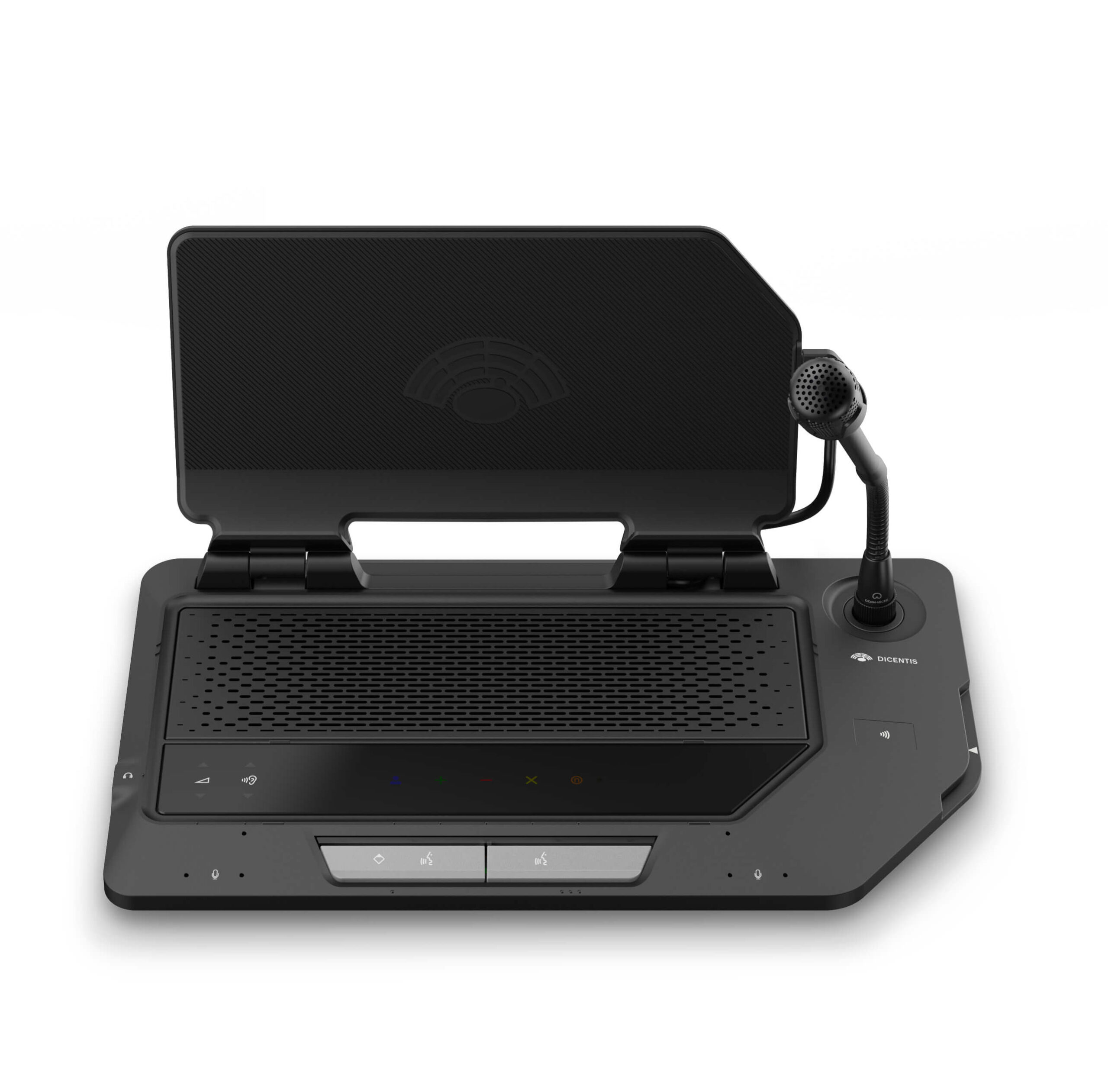

DCNM-MMDOCK Multimedia Docking

General

• Additional functionality by use of the Premium or Ultimate licenses only.
  • – Identification functionality.
  • – Voting.
  • – Select language.

Controls and indicators

• Touch buttons with haptic feedback.
• Touch buttons with haptic feedback.
• Braille indications.
• Agenda and meeting data browsing.
• Internet browsing.
• Live video (e.g. showing the current speaker).
• Meeting management for the chair person.
• Possibility for adding 3rd party and custom apps.
• Possibility for increased functionality by adding software.
• Built-in NFC card reader with card slot.
• Built-in MEMS microphones.
• Built-in loudspeaker and acoustical chamber.
• Pluggable microphone.
• Microphone on/off button or request-to-speak button.
• Microphone mute or chairperson priority button.
• Indicators showing: microphone on state, request-to-speak and possible-to-speak.
• Power button to wake up the system.

Interconnections

• 1x USB-C cable to connect a 3rd party tablet.
• 1x USB-C socket to connect a USB-C charger to locally power and fast-charge the 3rd party tablet.
• Socket for pluggable microphone.
• 2x RJ45 compatible connection for system communication and power.
• 3.5 mm stereo jack for headphones, external microphone or headset microphone.
• Hot plug-and-play
