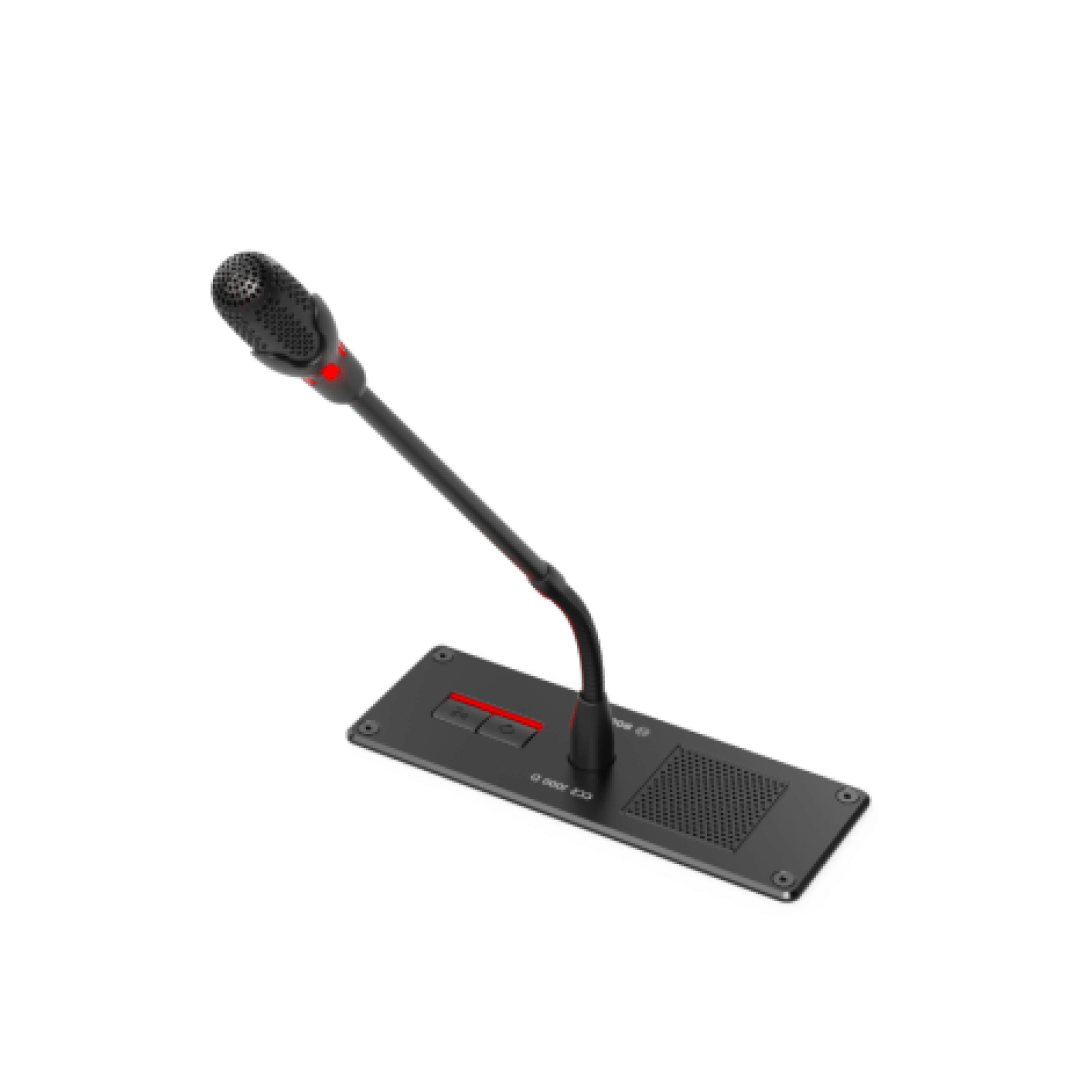

Flush Chairman Unit Short Microphone

Request‑to‑speak indication
A green request‑to‑speak indicator above the microphone button and in the head of the microphone indicate when a request‑to‑speak has been added to the waiting list. The indicators flash green when the request‑to‑speak is first in the waiting list.

Short or long microphone with flexible stem
The fixed microphone with flexible stem can be
easily adjusted to suit the user. For maximum
comfort, a short 310 mm (12.2 in) or long 480 mm
(18.9 in) microphone stem is available.

Built-in loudspeaker with volume control
To ensure for optimum intelligibility, the loudspeaker volume of all Discussion Devices is centrally controlled from the Control Unit.

Face-to-face meeting feeling
An authentic face‑to‑face meeting feeling is achieved by allowing the loudspeaker and microphone to be on at the same time.

Controls and Indicators

• Microphone button
• Color-coded LED indicator above the microphone
  button that shows the states: microphone on,
  request‑to‑speak, and possible‑to‑speak.
• Light‑ring indicator in head of microphone
• Concealed initialization button at base of device for reassigning the
  network address

Connections

• 1 x 6‑pole circular female connector with cable locking recess for loop‑through connection of the discussion devices
• 1 x 2 m (78.7 in) cable with a 6‑pole circular male connector with provision for a cable lock.
