LED Display All-in-One

SID All-in-One Large LED Display
  • Ultra-Narrow Frame
  • Lightweight All-In-One Design
  • High Reliability
  • Exclusively Developed System
  • Energy-saving and Environmental safeguarding
  • Quick installation & Maintenance
  • Multiple devices Connection & Control
  • Multiple Interfaces
  • Intelligent All-in-one Design
  • Built-in controller
  • Plug and Play
  • Comes in size 120″, 150″ and 180″ inch

Application Scenario:

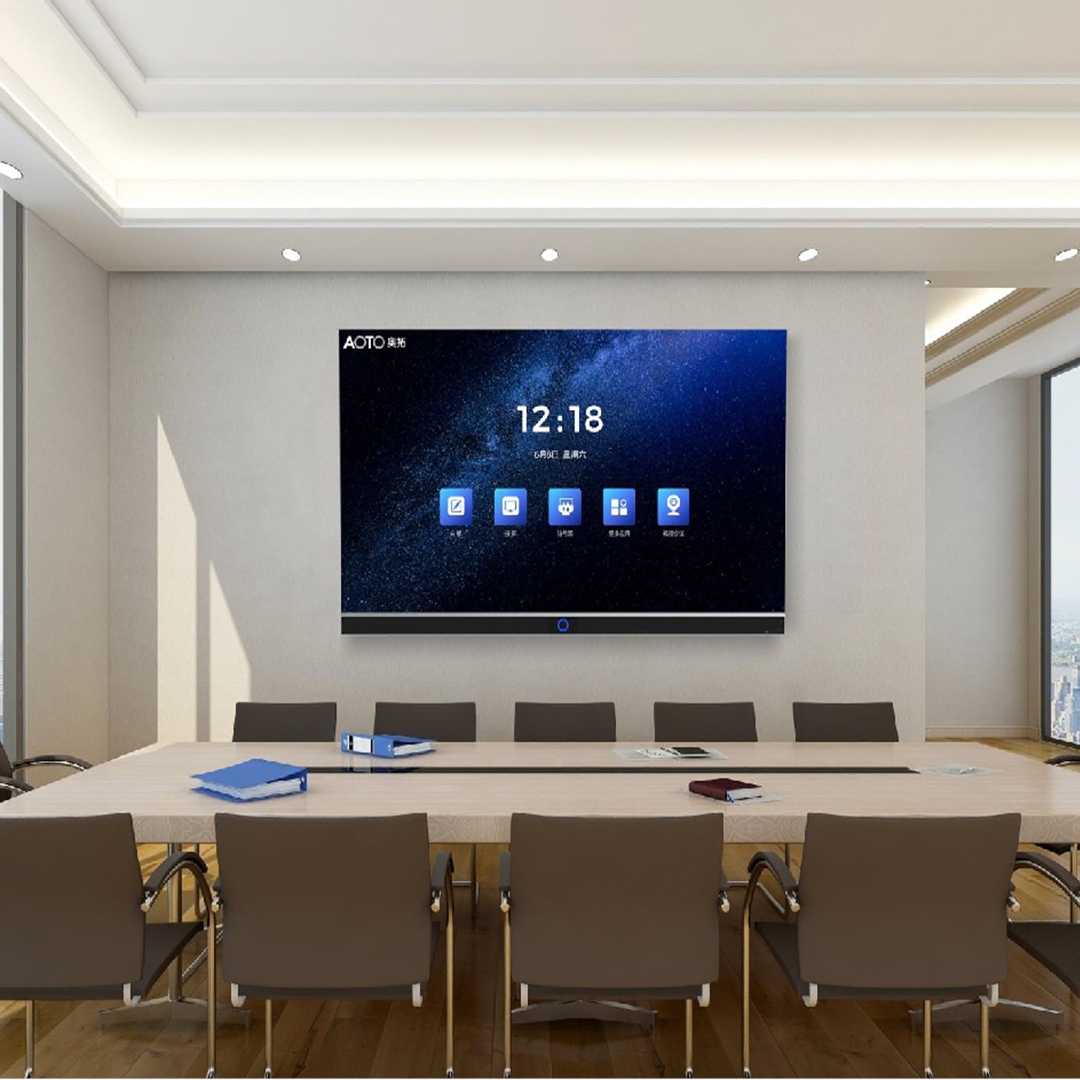

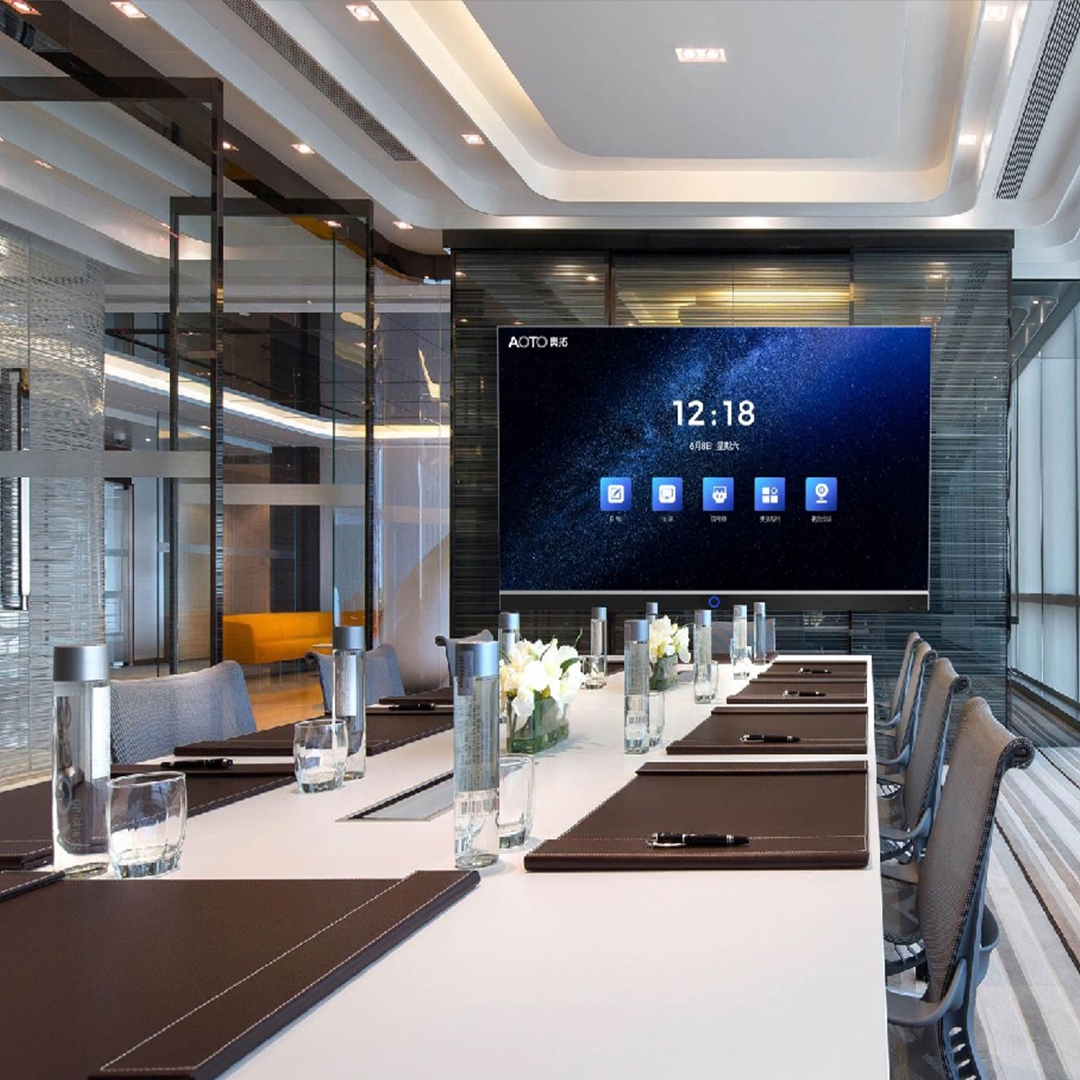

  • CONFERENCE ROOM
    Suitable for larger conference, lecture or training rooms. It delivers the superior visual performance and outstanding clarity to make sure the efficient meeting.

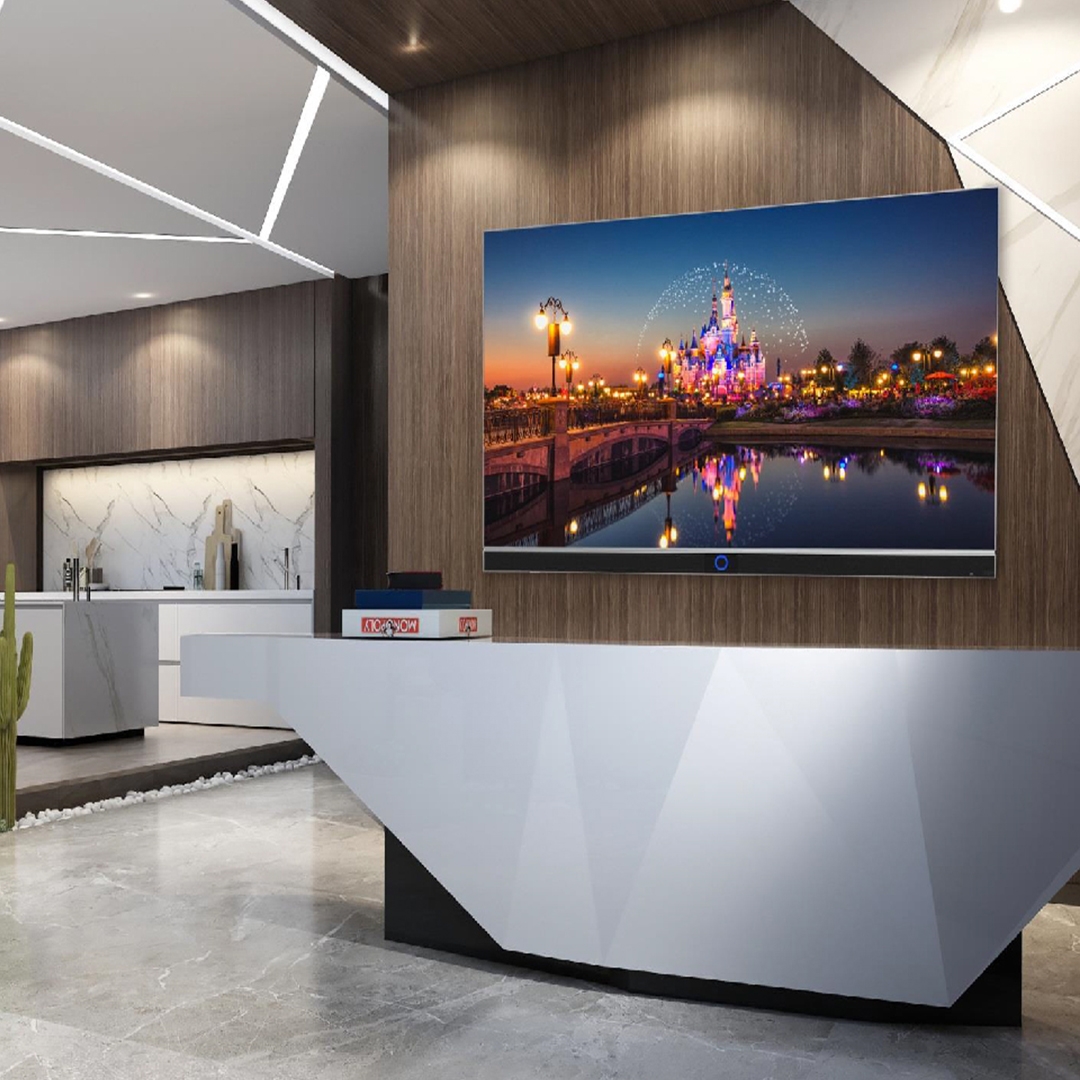

  • DIGITAL MEDIA
    LED display’s vivid colors and sharp images deliver amazing visual performance.

True intelligence behind the simplicity.

Ultra-Narrow Frame

  • 6mm Ultra-thin frame design
  • 19.8mm Cabinet depth
  • A collaborative canvas
  • A size for any application or scenario
  • Standard sizes 120/150/180 inches
  • Display with the impact your space deserves

Lightweight All-In-One Design.

  • Made from thin and light aviation-grade composite materials
  • 50% lighter than conventional LED products
  • Easily wall-mountable even without a non-load-bearing wall
  • No cabinet splicing
  • Offered as a turnkey solution

High Reliability.

  • The cabinet edges undergo a padded treatment to protect against damage
  • Nano surface spray finish for particle prevention and deeper blacks

Multiple Interfaces

  • 2 HDMI2.0 video input
  • 2 USB2.0 + 1 USB3.0 interface
  • LINE OUT audio output

Quick installation & Maintenance

  • Fast modular installation
  • Estimated Install time = 1hr (2 People)
  • 24V power supply
  • Supporting installlation and maintenance while live working

Energy-saving and Environmental safeguarding.

  • Ultra-low-voltage power supply
  • Dynamic power adjustment technology
  • 10A socket
  • Efficient heat dissipation
  • Exceptional user experience

Specification

Item Specifications
VERSION SID303SD（SID120）-2K155ASF
Screen size 120”
External dimension 2678 mm（W）x 1643.5 mm（H）
Resolution 1920（W）x 1080（H）
LED Type SMD 3 IN 1
Indoor height (base-mounted) ＞2.3 m
Weight (wall-mounted) 95 ± 10 kg
Material and Color Aluminum Alloy, Black and White
Calibrated Brightness 100~550 nits
Viewing Angle Horizontal: 160°±10°; Vertical: 160°±10°
Color Processing Depth 24 bit
Refresh Rate 3,840 Hz
Contrast Ratio 3000:1
Input Voltage AC100 V to AC240 V，50 or 60 Hz
Maximum / Average Power 1200 W / 300 W
Interface Bottom：HDMI x 2 , USB2.0 x 2 , USB3.0 , SPDIF out, LAN②
Back：HDMI③，USB④，Power interface
System configuration Built-in android 8.0 smart operating system；
WiFi：2.4Gx2；AP hotspot: 2.4G+5G ; RAM/ROM: 4G/32G；
Brightness adjustment：auto+manual；
Speaker：built-in speaker of 15W x 2 and support external speaker；
Screen-share：support Android，IOS，Windows system screen share by press once.
IP Rating IP30
Maintenance Front
Lifespan 100,000 hours
Operating Environment Temperature：-10℃－40℃ / Humidity：10% – 80% RH

Video Gallery

Newline NT series - Introduction AOTO SID ALL-IN-ONE LED Solution
