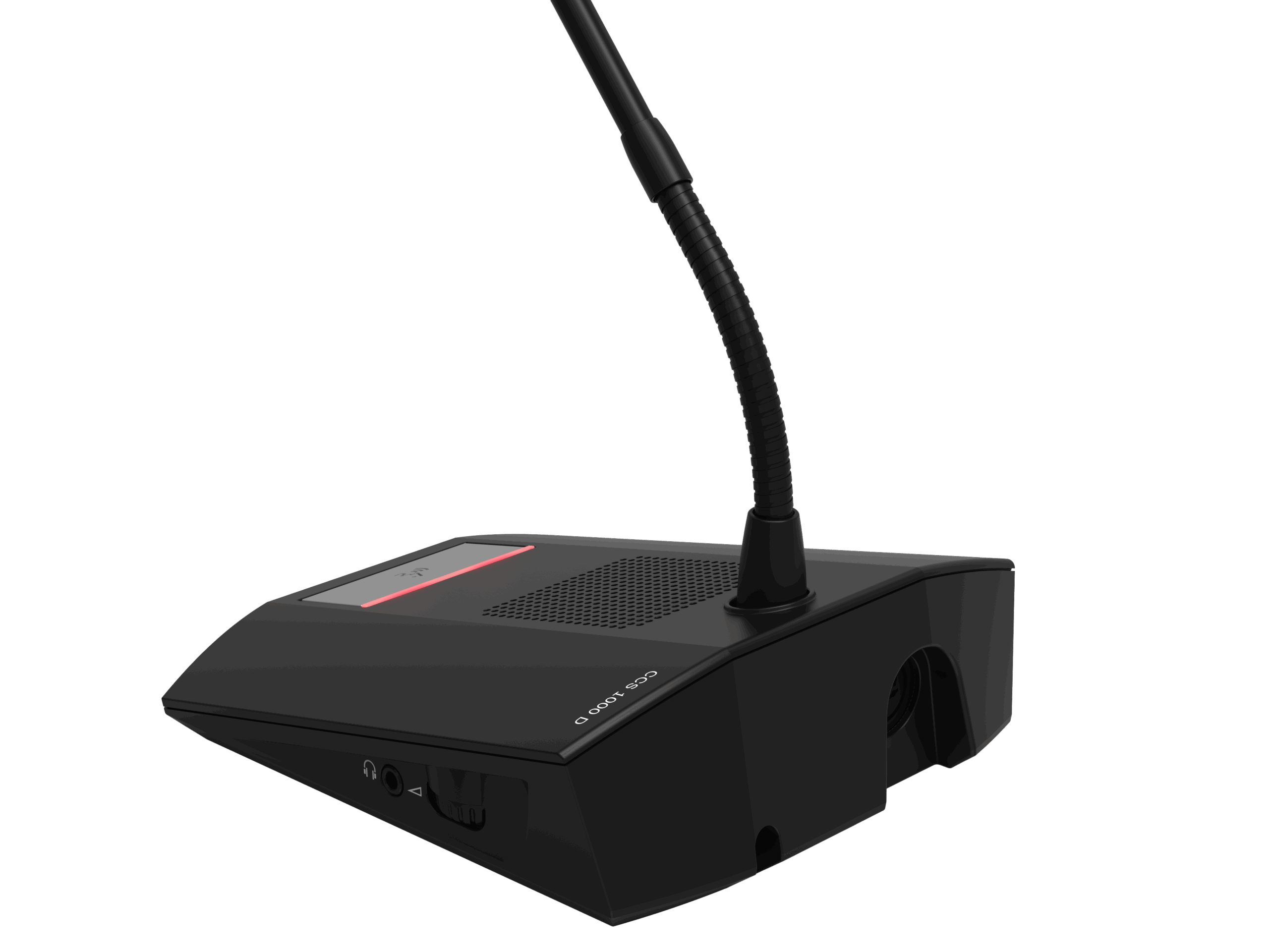

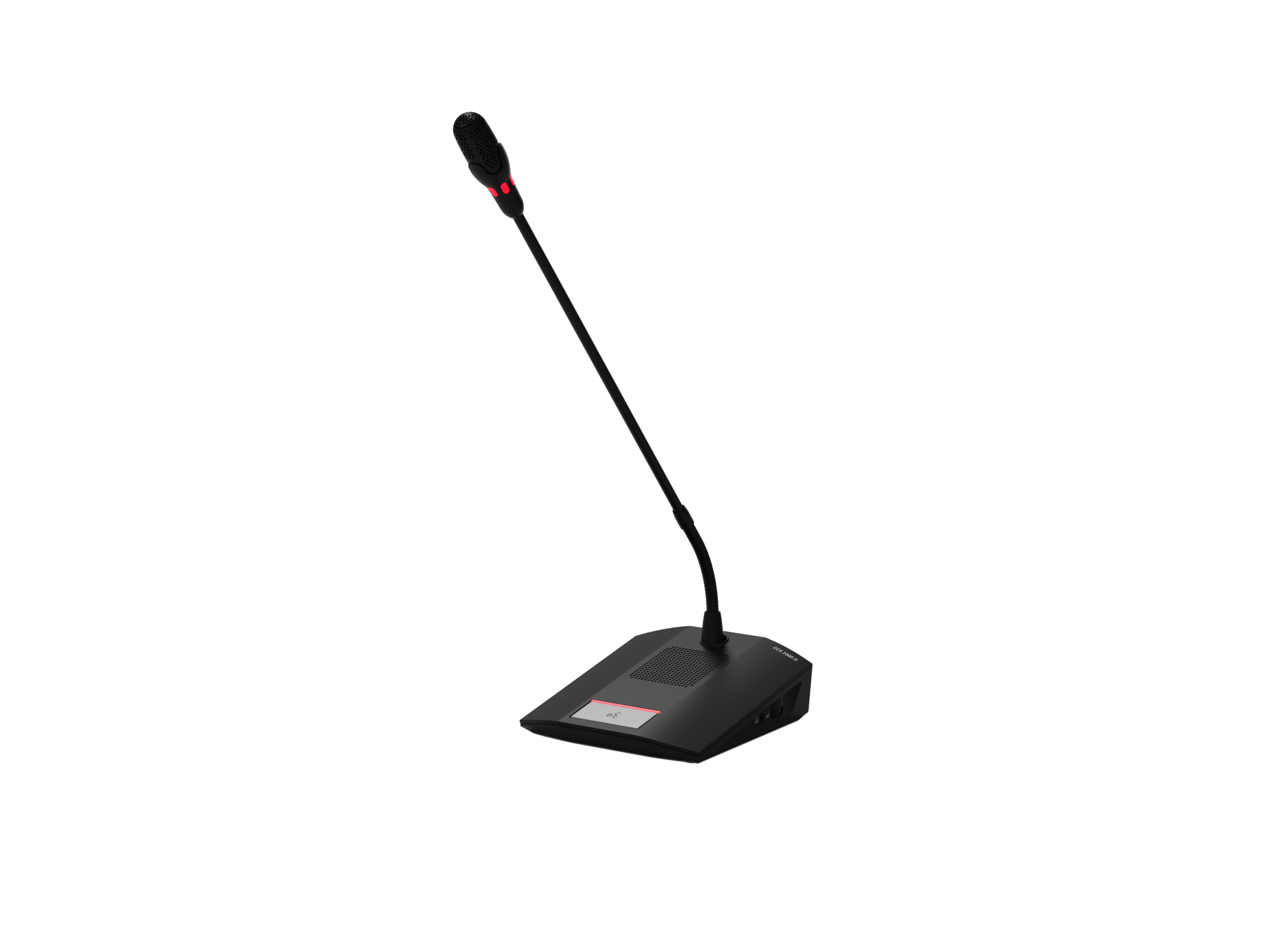

CCSD-DL2 Discussion Device with Long Microphone


CCS 1000 D  V2 Conference System

Newly redesigned Bosch CCS 1000 D Conference System, where smart design meets seamless functionality. Designed for plug-and-play, ease-of-use, and highly productive meetings.

Highlights:

  • Flexible microphone stem long 460mm with red light indicator for active microphone
  • Fresh minimalist design that takes up 25% less space
  • Hidden hinge for a cleaner, clutter-free look
  • Easily configured as a participant device or chairperson device
  • Ideal for small to medium meeting spaces – town halls, business centers, courtrooms
  • Easy to set up, easy to use, delivering highly productive meetings
  • Trusted audio quality, long lifecycle, low risk
  • Immunity to mobile phone interference

Excellent Speech Intelligibility

– Loudspeaker and microphone active at the same time
– Resulting in excellent speech intelligibility by all participants
– Unique Possible-to-Speak indicator (white) to notify participant if microphone can be switched on
– Request-to-Speak indicator (green) to notify participant that participant is in waiting list
– Microphone On indicator (red) to notify participant that microphone is active

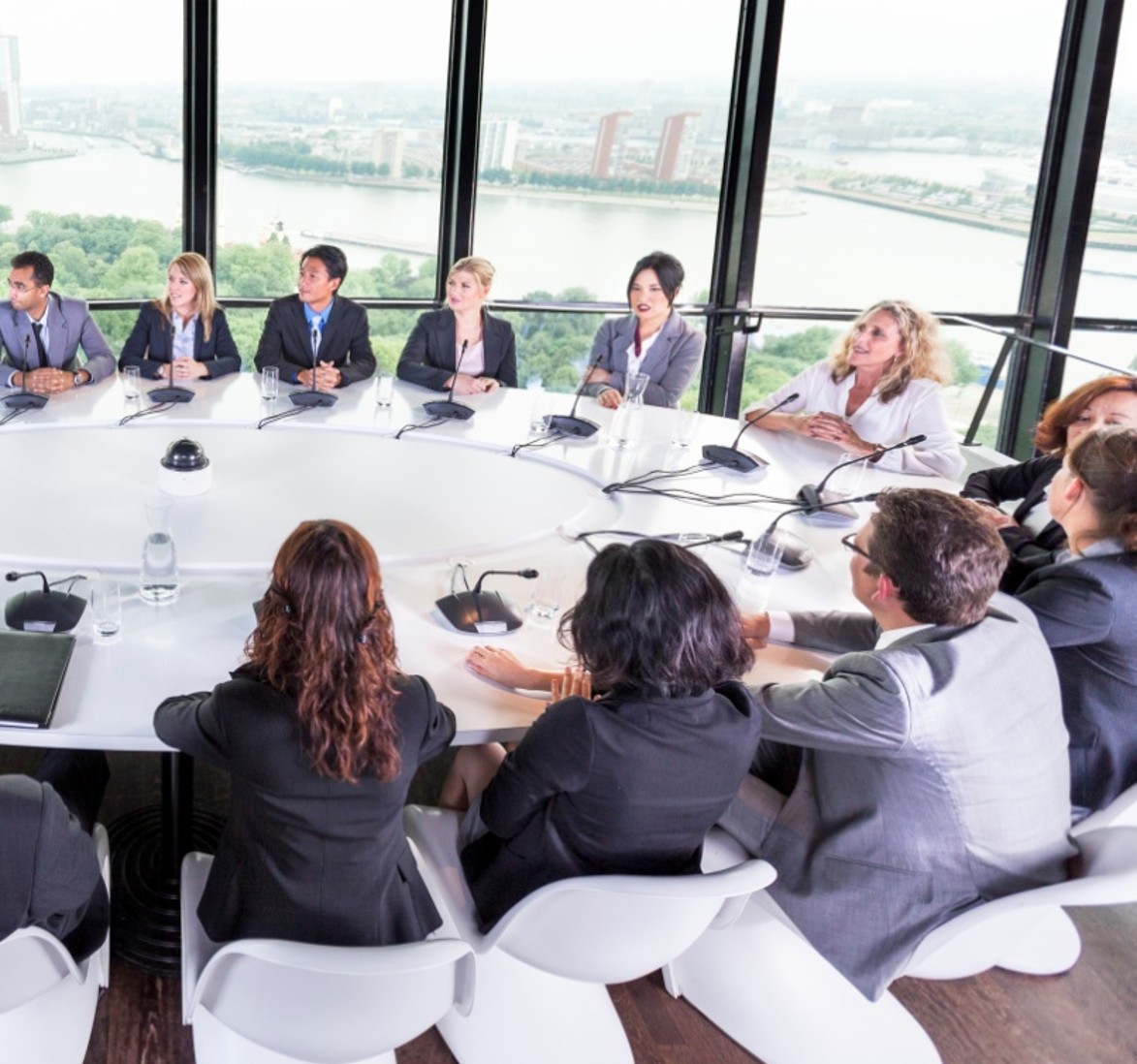

conference system

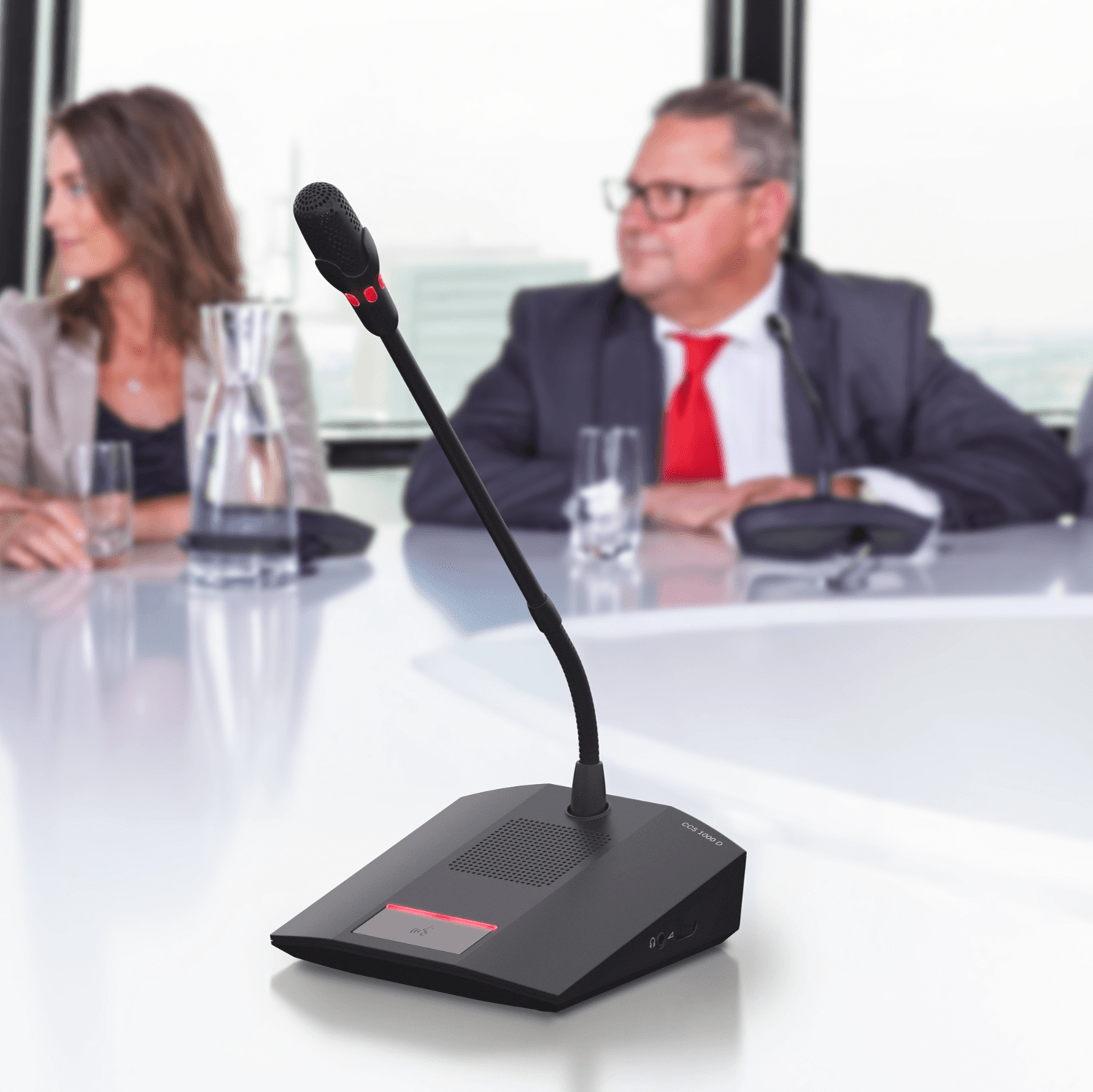

conference system

Built-in Digital Acoustic Feedback Suppression

– Higher volumes without howling
– First manufacturer to include feedback suppression in CCS 900 Ultro
– Further improved in CCS 1000D

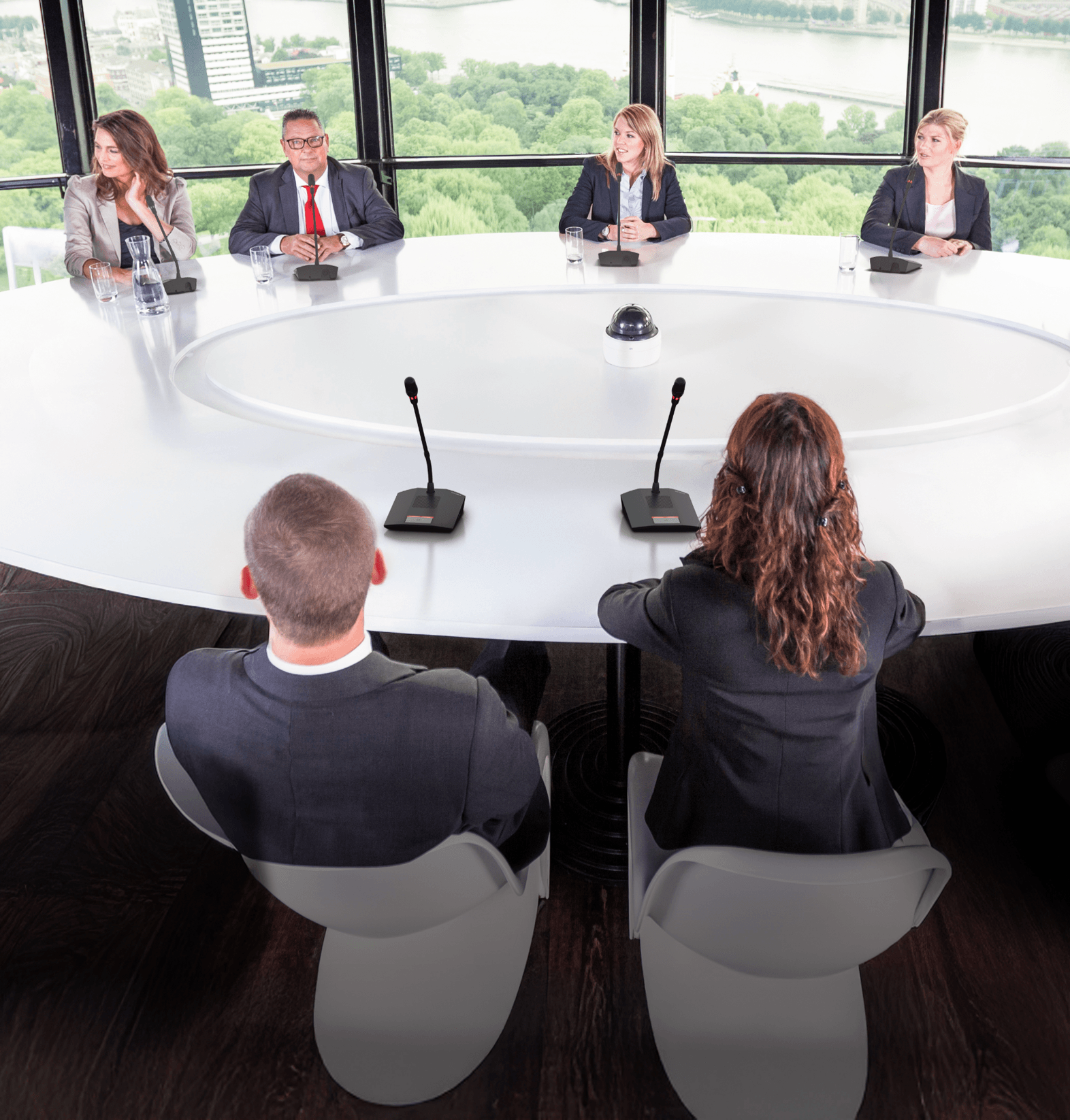

Native Automatic HD Camera Control

– Standard support up to six HD Conference Dome cameras
– Configuration via the web browser, no need for additional software applications
– Resulting in crisp, clear images of the active speakers

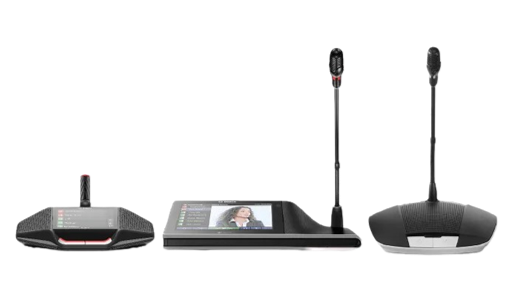

conference system
conference system

Web-based control (tablet / browser)

– Easy accessible web interface
– Access by tablet (via wireless router), laptop or PC (direct Ethernet connection)
– Supports all 5 popular browsers : Firefox, Internet Explorer, Chrome, Opera and Safari
– Advanced configuration for technician
– Seat names, Camera assignment, Audio outputs, and more..
– Intuitive microphone control for chairperson
– Manage microphones, recordings and more…

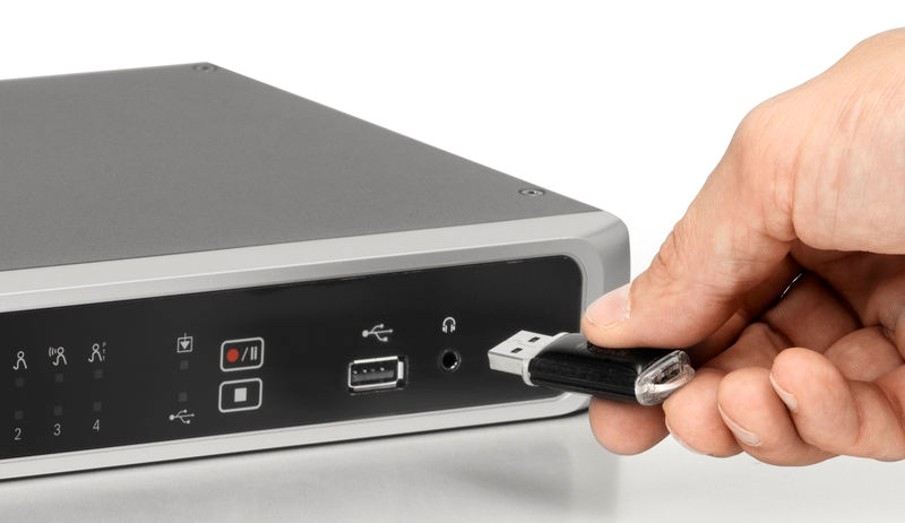

Built-in recording (internal + USB)

– Unique digital recording on internal memory up to 8 hours
– Up to 4000 hours recording using a single 128GB USB stick

Specification

Electrical
Power consumption (W) 1.3 W
Frequency response (Hz) 30 Hz – 20,000 Hz (system electrical)
Total harmonic distortion + noise (%) < 0.5%
Minimum signal-to-noise ratio (dBA) 93 dBA
Sample rate (kHz) 44.1 kHz
Load impedance (ohm) (headphones) 32 ohm – 1000 ohm
Maximum peak output power (W) (loudspeaker) 4 W
Acoustic
Nominal acoustic output level (dB SPL) (loudspeaker) 72 dB SPL
Frequency response (Hz) (participant loudspeaker) 200 Hz – 16000 Hz (acoustical)
Polar pattern (microphone) Cardioid
Frequency response (Hz) (participant microphone) 125 Hz – 15000 Hz
Nominal acoustic input level (dB SPL) (microphone) 85 dB SPL
Mechanical
Dimensions (H x W x D) (mm) (without microphone) 50 mm x 150 mm x 132 mm
Dimensions (H x W x D) (in) (without microphone) 2 in x 5.9 in x 5.2 in
Height (mm) (with microphone in horizontal position) 120 mm
Height (in) (with microphone in horizontal position) 4.7 in
Microphone stem length (mm) 460 mm
Microphone stem length (in) 18.9 in
Weight (kg) Approx. 1 kg
Weight (lb) Approx. 2.2 lb
Mounting type Tabletop (portable or fixed)
Material (top) Plastic (ABS) + PC
Material (base) Metal ZnAl4
Color (RAL) (top) RAL 9017 Traffic black
Color (RAL) (base) RAL 9017 Traffic black
Environmental
Operating temperature (°C) 0 °C – 35 °C
Operating temperature (°F) 32 °F – 95 °F
Storage temperature (°C) -40 °C – 70 °C
Storage temperature (°F) -40 °F – 158 °F
Transportation temperature (°C) -40 °C – 70 °C
Transportation temperature (°F) -40 °F – 158 °F
Operating relative humidity, non-condensing (%) 5% – 98%
Air pressure (hPa) 600 hPa – 1,100 hPa
