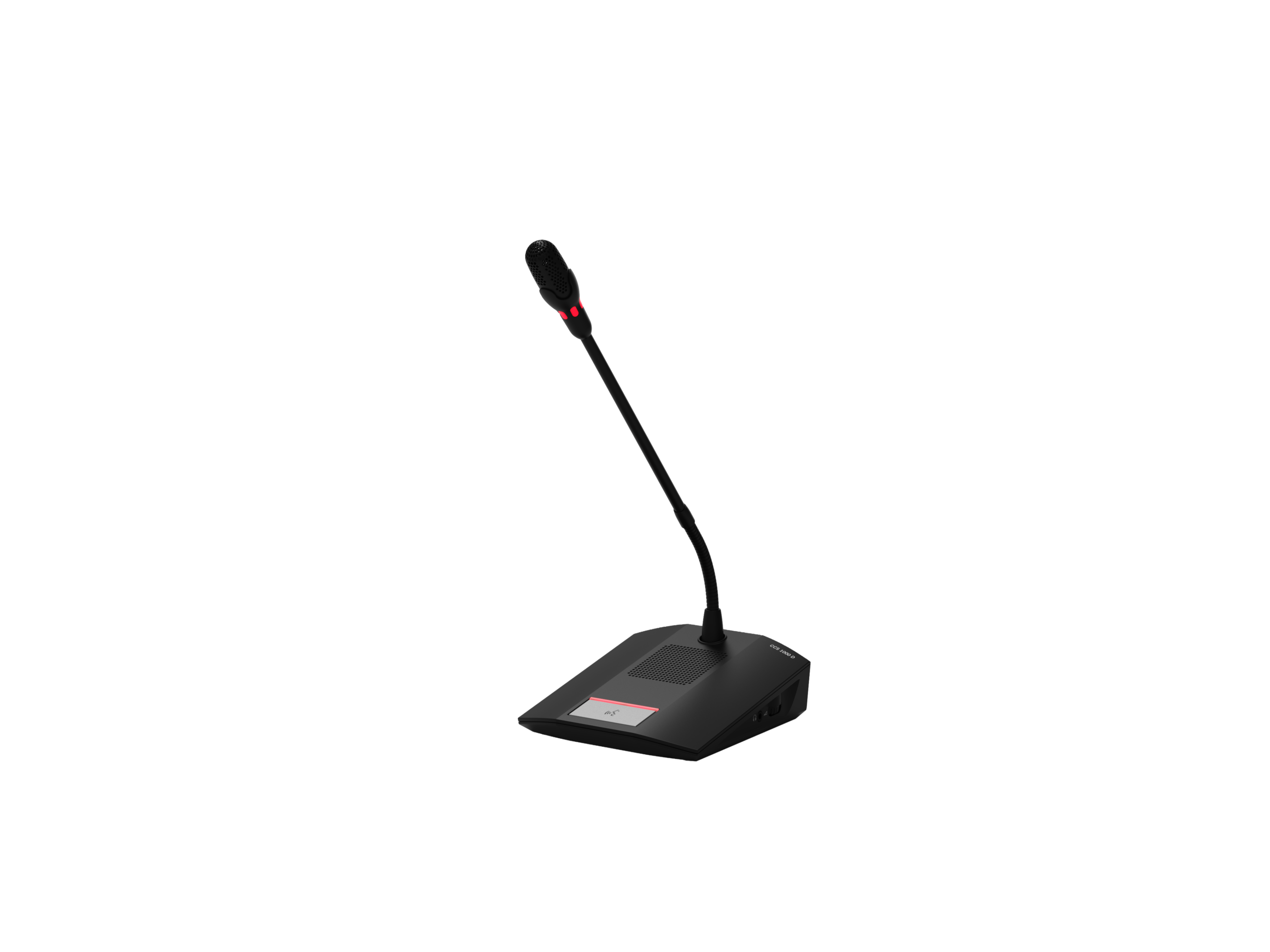

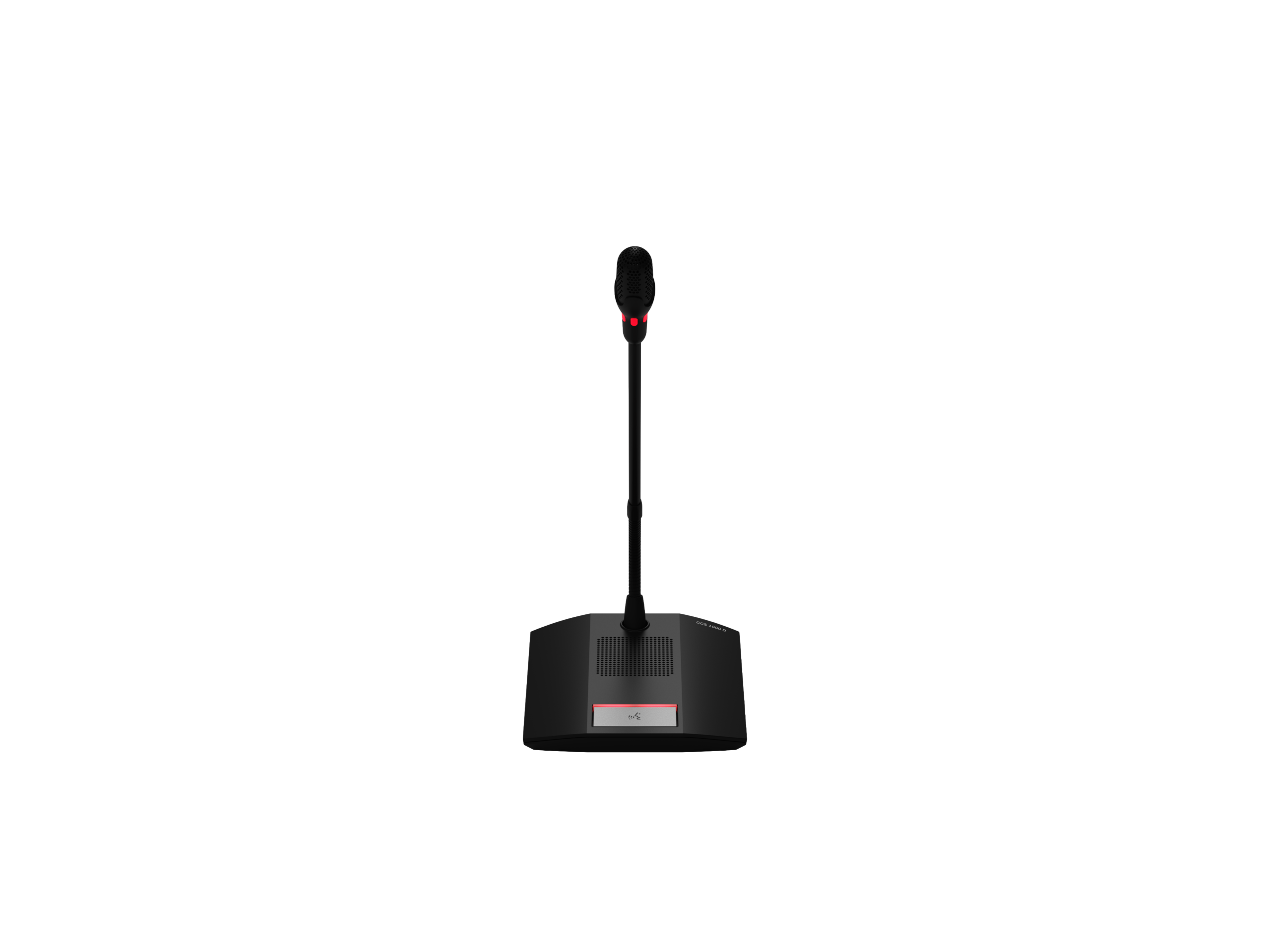

CCSD-DS2 Discussion Device with Short Microphone


CCS 1000 D v2 Conference System

Newly redesigned Bosch CCS 1000 D Conference System, where smart design meets seamless functionality. Designed for plug-and-play, ease-of-use, and highly productive meetings.

Highlights:

  • Flexible microphone stem short 310mm with red light indicator for active microphone
  • Fresh minimalist design that takes up 25% less space
  • Hidden hinge for a cleaner, clutter-free look
  • Easily configured as a participant device or chairperson device
  • Ideal for small to medium meeting spaces – town halls, business centers, courtrooms
  • Easy to set up, easy to use, delivering highly productive meetings
  • Trusted audio quality, long lifecycle, low risk
  • Immunity to mobile phone interference

Excellent Speech Intelligibility

– Loudspeaker and microphone active at the same time
– Resulting in excellent speech intelligibility by all participants
– Unique Possible-to-Speak indicator (white) to notify participant if microphone can be switched on
– Request-to-Speak indicator (green) to notify participant that participant is in waiting list
– Microphone On indicator (red) to notify participant that microphone is active

conference system
conference system

Built-in Digital Acoustic Feedback Suppression

– Higher volumes without howling
– First manufacturer to include feedback suppression in CCS 900 Ultro
– Further improved in CCS 1000D

Native Automatic HD Camera Control

– Standard support up to six HD Conference Dome cameras
– Configuration via the web browser, no need for additional software applications
– Resulting in crisp, clear images of the active speakers

conference system
conference system

Web-based control (tablet / browser)

– Easy accessible web interface
– Access by tablet (via wireless router), laptop or PC (direct Ethernet connection)
– Supports all 5 popular browsers : Firefox, Internet Explorer, Chrome, Opera and Safari
– Advanced configuration for technician
– Seat names, Camera assignment, Audio outputs, and more..
– Intuitive microphone control for chairperson
– Manage microphones, recordings and more…

Built-in recording (internal + USB)

– Unique digital recording on internal memory up to 8 hours
– Up to 4000 hours recording using a single 128GB USB stick

Specification

ElectricalPower consumption (W)1.3 WFrequency response (Hz)30 Hz – 20,000 Hz (system electrical)Total harmonic distortion + noise (%)< 0.5%Minimum signal-to-noise ratio (dBA)93 dBASample rate (kHz)44.1 kHzLoad impedance (ohm) (headphones)32 ohm – 1000 ohmMaximum peak output power (W) (loudspeaker)4 WAcousticNominal acoustic output level (dB SPL) (loudspeaker)72 dB SPLFrequency response (Hz) (participant loudspeaker)200 Hz – 16000 Hz (acoustical)Polar pattern (microphone)CardioidFrequency response (Hz) (participant microphone)125 Hz – 15000 HzNominal acoustic input level (dB SPL) (microphone)85 dB SPLMechanicalDimensions (H x W x D) (mm) (without microphone)50 mm x 150 mm x 132 mmDimensions (H x W x D) (in) (without microphone)2 in x 5.9 in x 5.2 inHeight (mm) (with microphone in horizontal position)120 mmHeight (in) (with microphone in horizontal position)4.7 inMicrophone stem length (mm)310 mmMicrophone stem length (in)12.2 inWeight (kg)Approx. 1 kgWeight (lb)Approx. 2.2 lbMounting typeTabletop (portable or fixed)Material (top)Plastic (ABS) + PCMaterial (base)Metal ZnAl4Color (RAL) (top)RAL 9017 Traffic blackColor (RAL) (base)RAL 9017 Traffic black

Environmental
Operating temperature (°C) 0 °C – 35 °C
Operating temperature (°F) 32 °F – 95 °F
Storage temperature (°C) -40 °C – 70 °C
Storage temperature (°F) -40 °F – 158 °F
Transportation temperature (°C) -40 °C – 70 °C
Transportation temperature (°F) -40 °F – 158 °F
Operating relative humidity, non-condensing (%) 5% – 98%
Air pressure (hPa) 600 hPa – 1,100 hPa
