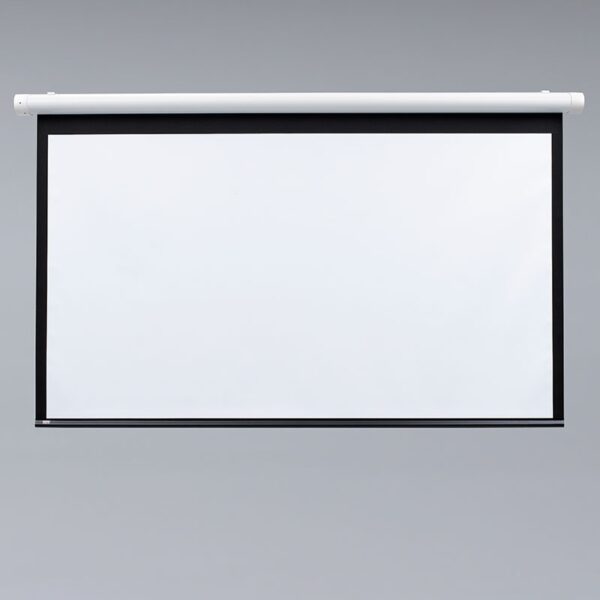

Salara/Series M with AR


Manual Projection Screen – Wall/Ceiling Recessed Non-Tensioned

Highlights:

  • Case dimensions 10 cm x 13 cm.
  • Maximum fabric width up to 244 cm wide.
  • Black drop may be standard, depending on screen size. Extra drop above image area available upon request. Black side borders are available for AV format upon request.
  • Floating wall brackets grip the screen securely anywhere along the back of the case, and are barely visible.
  • High-quality, spring-roller projection screen can be wall- or ceiling-mounted.
  • The AutoReturn feature prevents potential damage to the dowel or screen surface.
  • Intermediate stop positions allow you to lower or raise the screen completely, and stop at any point in between.
  • Small, elliptical case with domed endcaps finished in white.
  • Custom sizes available.

Salara/Series M with AR

A manual screen, the wall- or ceiling-mounted salara m with ar offers an autoreturn feature to eliminate Projection screen damage. A simple pull of the handle and the autoreturn feature automatically retracts the Projection screen. It slows the return as the screen approaches its upper limit, thus eliminating any banging When the screen enters the case. Lock and load brackets make this screen easy to install, while remaining barely Visible. This free-hanging, fiberglass-backed projection screen maintains flatness thanks to the weight of the Screen and bottom dowel. With a stylish, small elliptical case, the salara m with ar is ideal for home or Educational environments.

Surfaces

Dimensions Data



AV Format

Size Image Area Case Length Net Wt.
(lbs.)
50″ x 50″ 50″ x 50″ 4’8-1/2″ 26
60″ x 60″ 60″ x 60″ 5’6-1/2″ 30
70″ x 70″ 70″ x 70″ 6’4-1/2″ 35
84″ x 84″ 84″ x 84″ 7’6-1/2″ 40
72″ x 96″ 72″ x 96″ 8’7″ 44
96″ x 96″ 96″ x 96″ 8’7″ 45
7′ x 9′ 7′ x 9′ 9’7″ 47
9′ x 9′ 9′ x 9′ 9’7″ 49
8′ x 10′ 8′ x 10′ 10’7″ 54
10′ x 10′ 10′ x 10′ 10’7″ 58
9′ x 12′ 9′ x 12′ 12’7″ 61
12′ x 12′ 12′ x 12′ 12’7″ 66

NTSC Format (4.3)

Size Image Area Case Length Net Wt.
(lbs.)
6′ 42-1/2″ x 56-1/2″ 5’6-1/2″ 30
7′ 50″ x 66-1/2″ 6’4-1/2″ 35
100″ 60″ x 80″ 7’6-1/2″ 40
10′ 69″ x 92″ 8’7″ 44
11′ 78″ x 104″ 9’7″ 47
150″ 87″ x 116″ 10’7″ 54
15′ 105″ x 140″ 12’7″ 61
200″ 118″ x 158″ 14’1″ 68

HDTV Format (16.9)

Size Image Area Case Length Net Wt.
(lbs.)
92″ 45″ x 80″ 7’6-1/2″ 40
106″ 52″ x 92″ 8’7″ 44
119″ 58″ x 104″ 9’7″ 46
133″ 65″ x 116″ 10’7″ 54
161″ 79″ x 140″ 12’7″ 61
184″ 90″ x 160″ 14’3″ 68

WideScreen Format (1.85:1)

Size Image Area Case Length Net Wt.
(lbs.)
99″ 47″ x 87″ 8’1″ 40
108″ 50″ x 92″ 8’7″ 44
120″ 56″ x 104″ 9’7″ 49
132″ 63″ x 116″ 10’7″ 54
162″ 76″ x 140″ 12’7″ 66
182″ 86-1/2″ x 160″ 14’3″ 68
